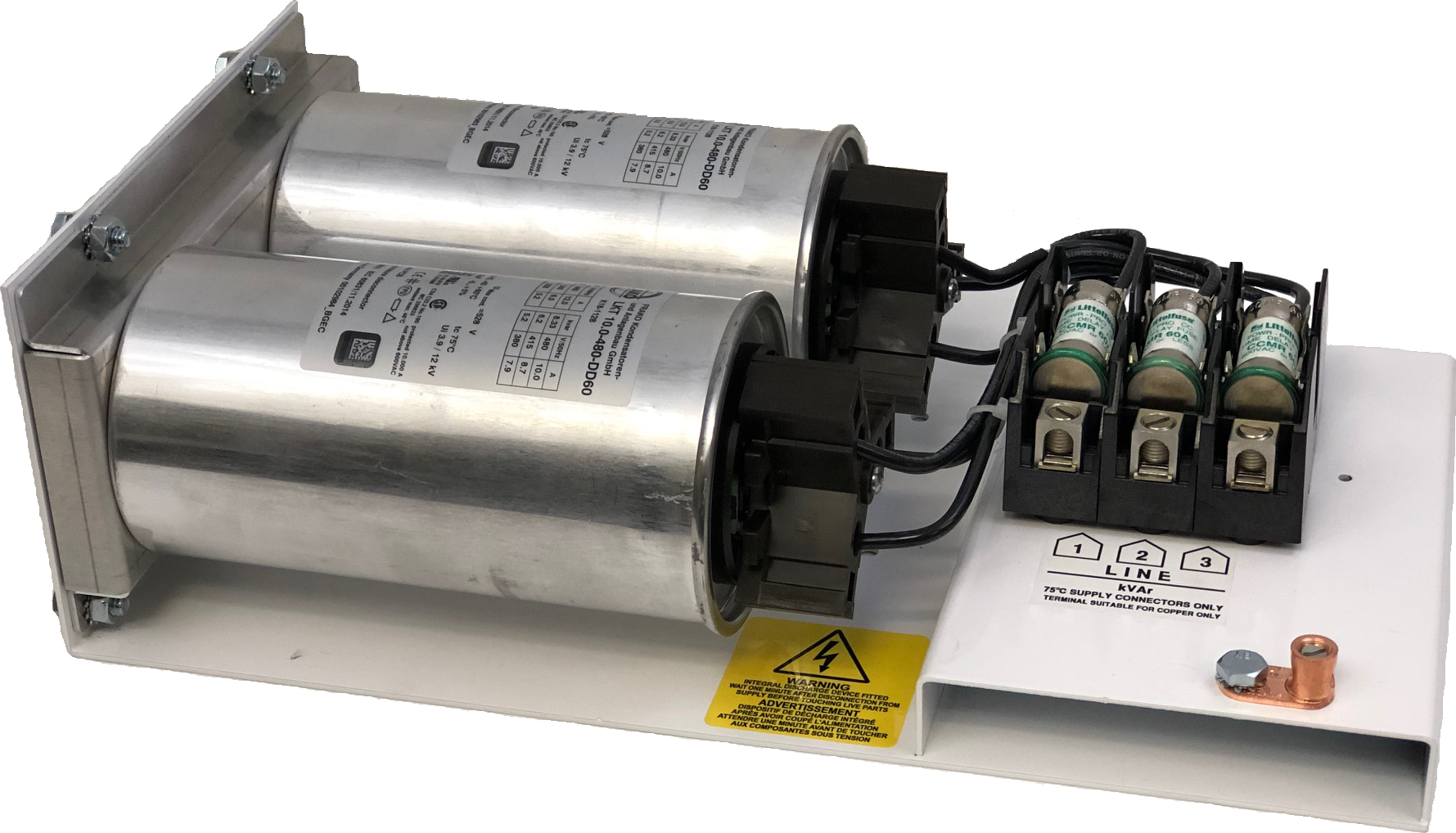

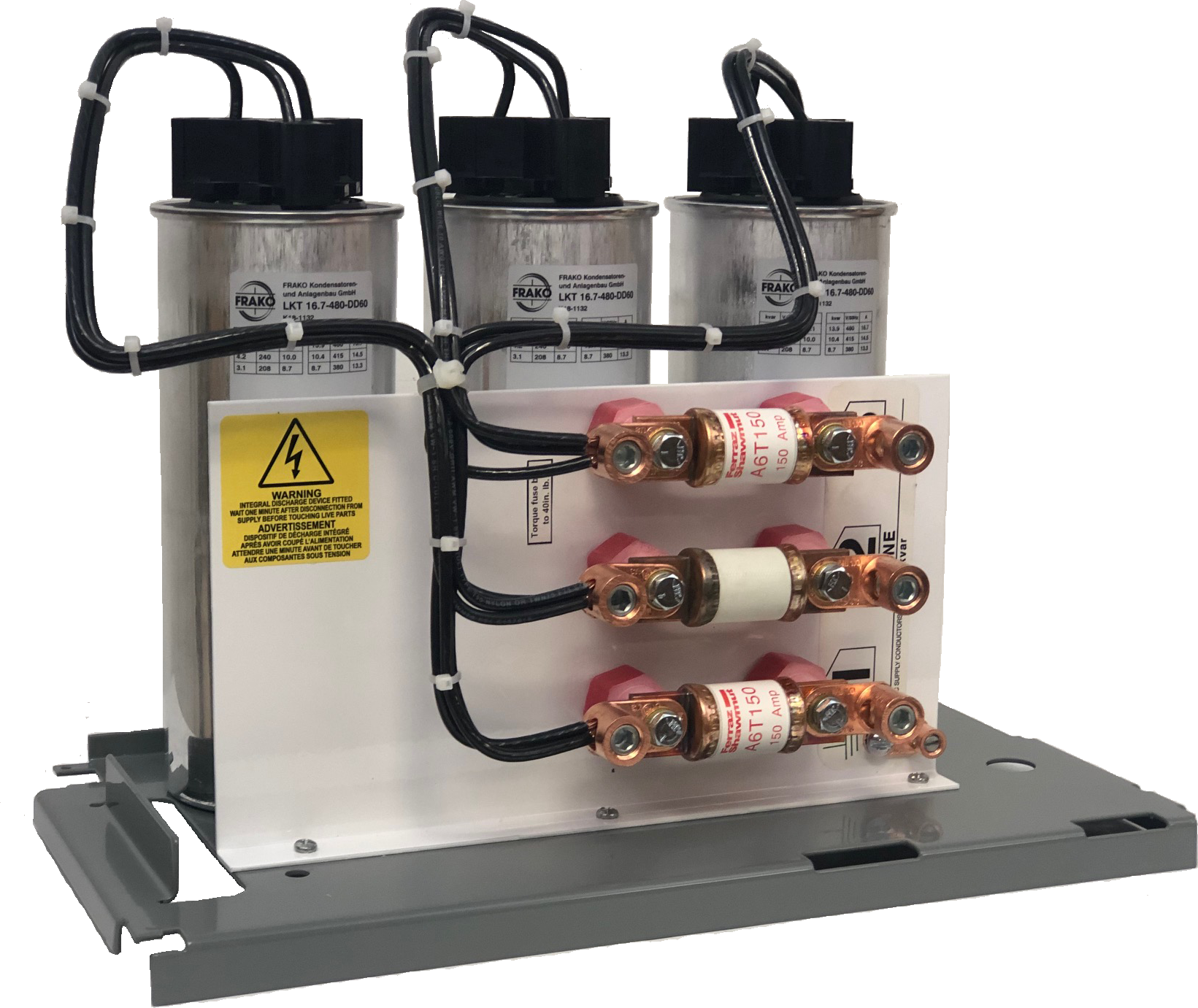

Rockwell Automation Allen-Bradley Traymount®

**IMPORTANT PRODUCT UPDATE**

TANM and TAPM part numbers are now obsolete.  Please contact the MZI engineering team at 586-979-9955 or techsupport@myronzucker.com for assistance with current part numbers.

APPLICATIONS

  • At the load within Motor Control Centers (MCCs)

MODELS

  • TANX Model: blown fuse indication
  • TAPX Model: fusing without indication

STANDARD FEATURES

  • UL recognized component
  • 2-year warranty
  • 3-line fusing
  • Discharge resistors per NEC requirements
  • Assembled in the USA

STANDARD RATINGS

  • 240, 480, 600 V
  • 3-phase
  • 60 Hz

CAPACITOR CELLS

  • Continuous voltage rating:
    • 528 V for 480 V application
    • 660 V for 600 V application
    • 264 V for 240 V application
  • Continuous current rating: 165% of nominal
  • Ambient temperature rating: 140° F
  • 130,000 hours rated life
  • 2-year warranty
  • Self-contained, 3-phase, delta-connected
  • Industrial grade dry-type construction
  • Losses of less than ½ watt per kVAr
  • Self-healing metallized polypropylene dielectric film
  • 3-phase overpressure disconnector
  • Hermetically-sealed aluminum case
  • Finger-safe, maintenance free terminals

FUSES

  • Fast-acting, current-limiting, with 200,000 ampere interrupting capacity

FIELD WIRING TERMINATION

  • Mechanical connections are provided for all field wiring termination points
  • Refer to product manual for incoming conductor information

OPTIONS

  • Other voltage and phase applications available
  • Other kVAr configurations available, please contact Myron Zucker, Inc. to speak to an engineer
