Cylindrical Capacitor Cells

Information Sheet

(Model CAPF)

  • 240, 480, 600 V
  • 3-phase
  • 60 Hz (may also be derated to 50 Hz)

PERFORMANCE CHARACTERISTICS

  • Continuous ambient temperature rating: -40° F to +140° F
  • Altitude: 13,124 feet
  • Continuous current rating: 165 % x INom
  • Continuous voltage rating: 110% of rated voltage
  • Tolerance (μF and kVAr): -0 % / +5 %

CONSTRUCTION FEATURES

  • Aluminum case
  • Dry type capacitor cell
  • Constructed with segmented, self-healing metalized polypropylene film

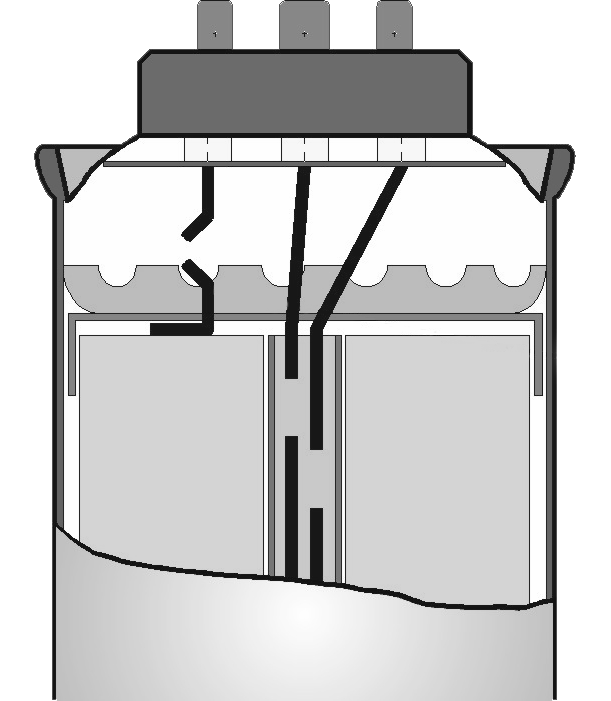

  • Internal over-pressure device that disconnects all three phases in the event of internal overpressure
  • Discharge resistors: Voltage discharge to 50V or less within one minute after capacitor is disconnected from the power source

INSTALLATION INFORMATION

  • Finger-safe, screwless terminations that secure wiring with an anti-vibration connection
  • M12 x 16 mm mounting stud at bottom of cell
